Phased Construction Revit Model
Yuerba Buena Island Modeled Aerial View

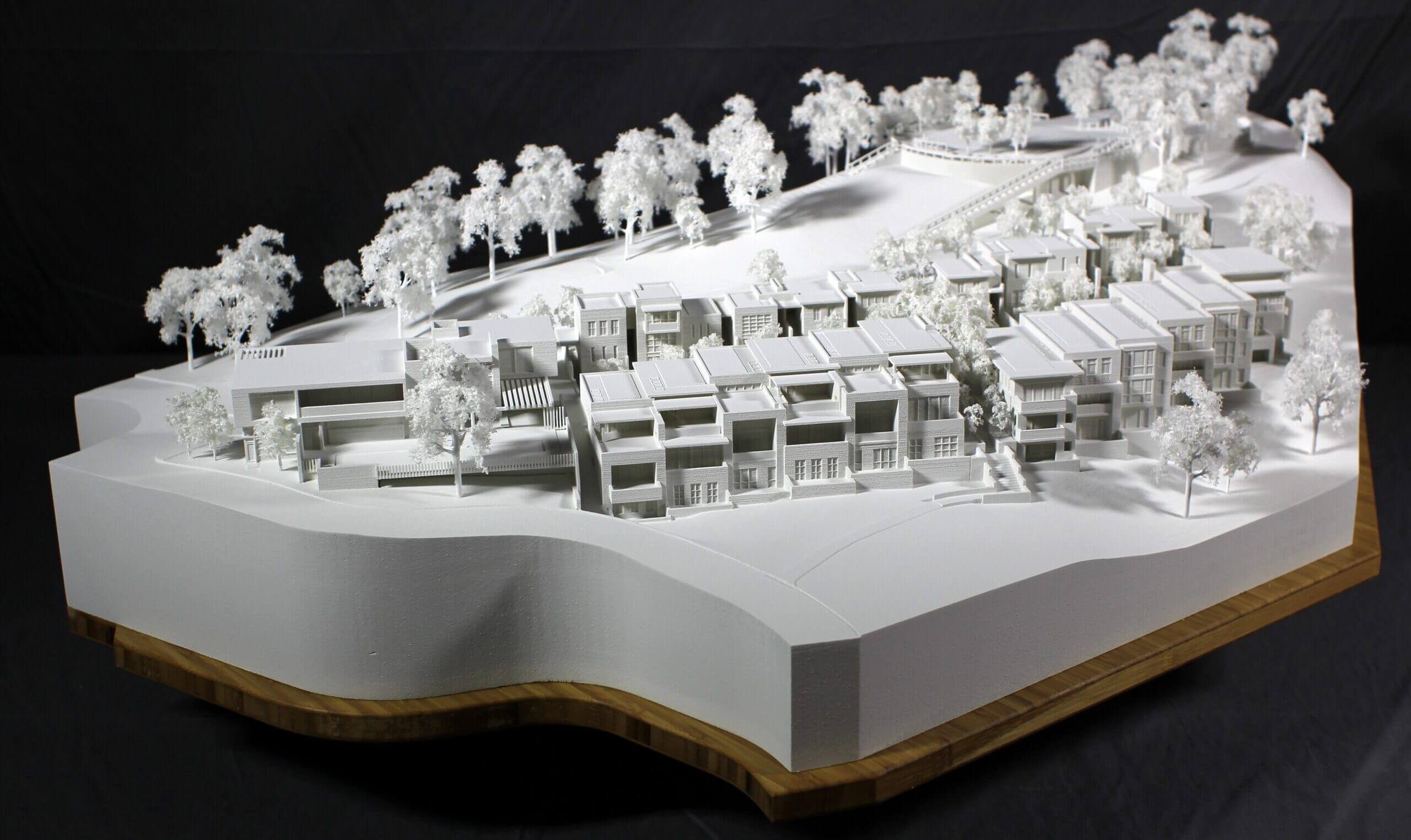

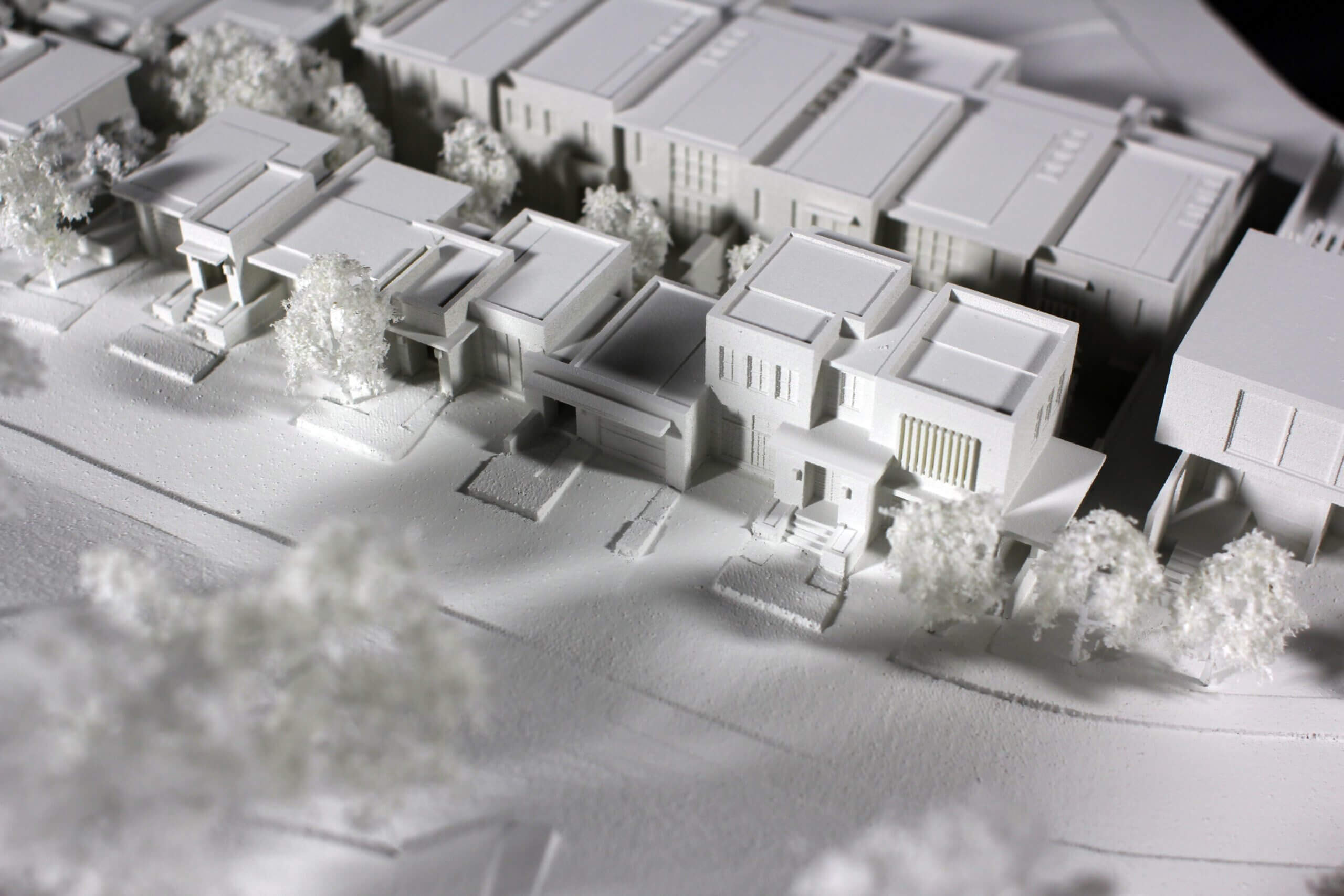

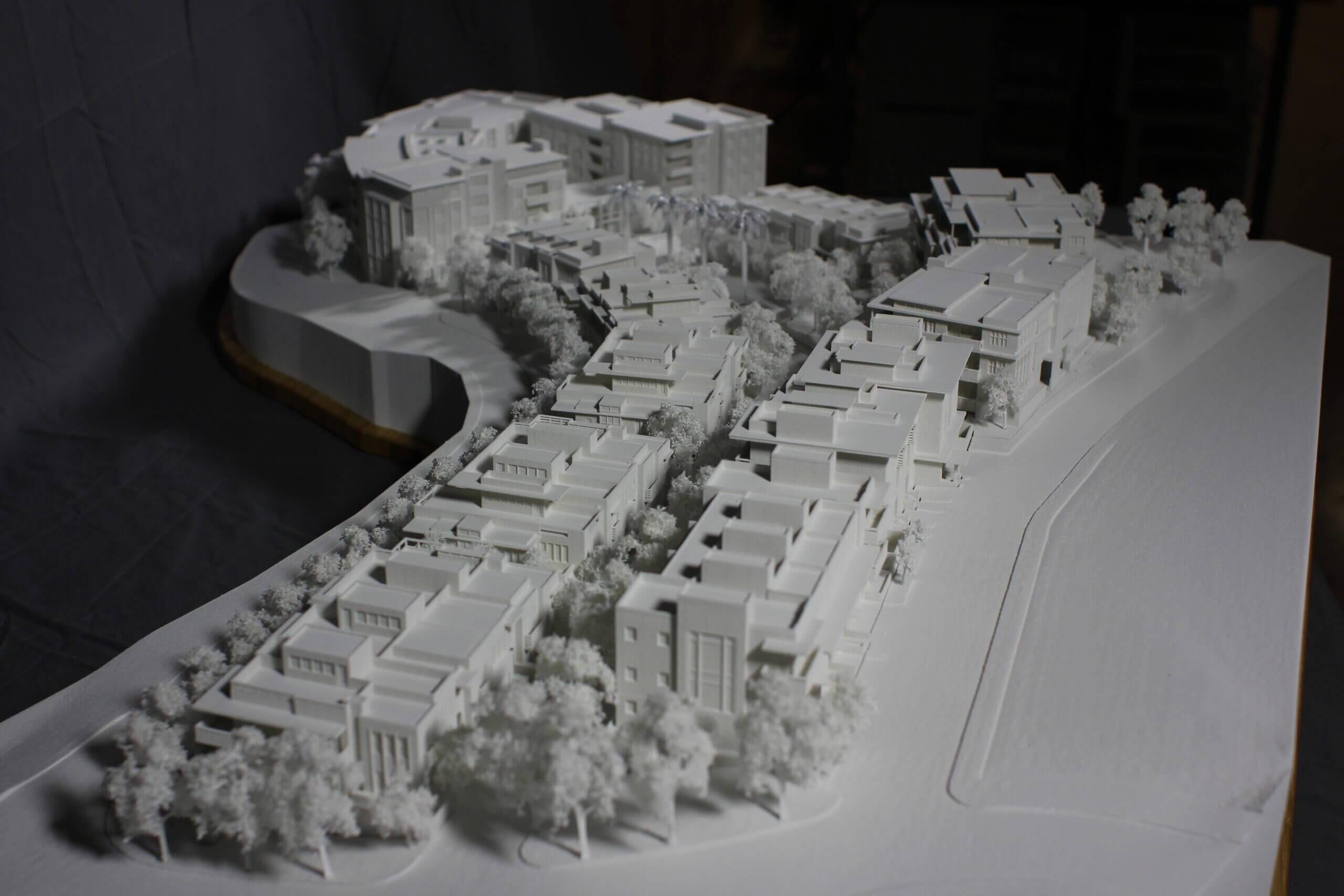

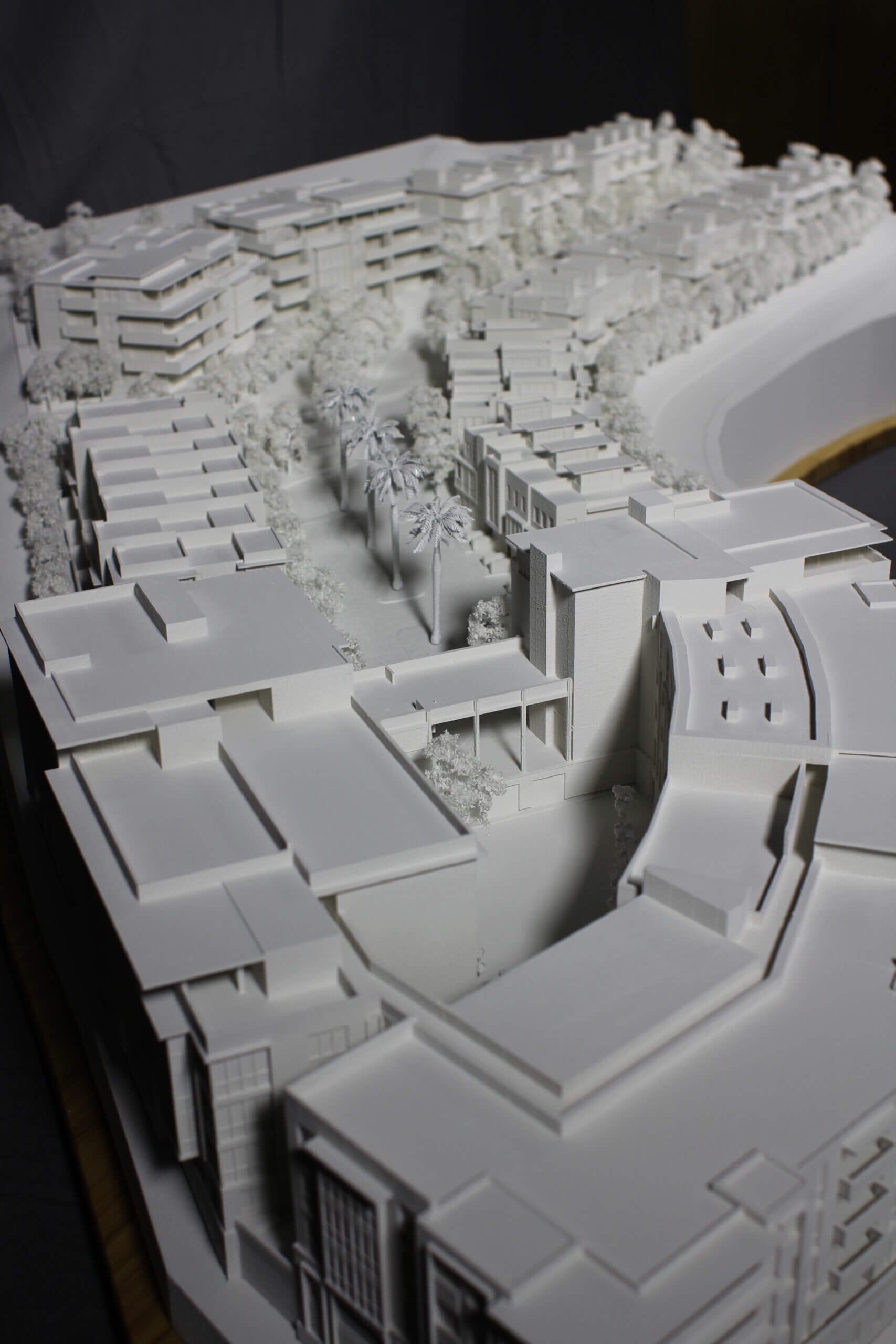

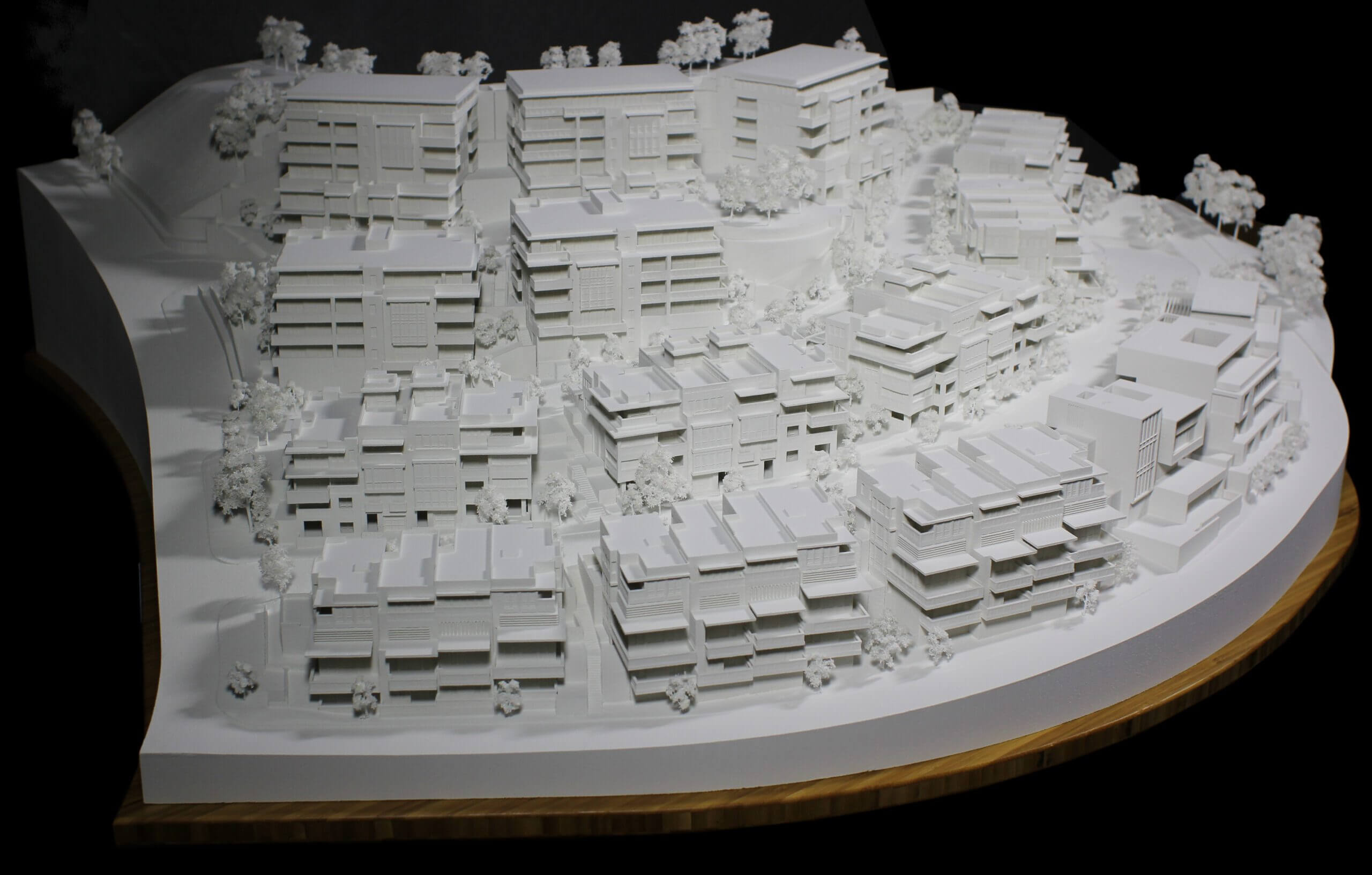

Hart Howerton commissioned a model built in phases that accurately represented the complexity between topography and structure. With multiple residential architecture, engineering, and landscape design firms included in the Yuerba Buena Island Project, it was crucial to show how each phase integrated into a seamless architectural vision.

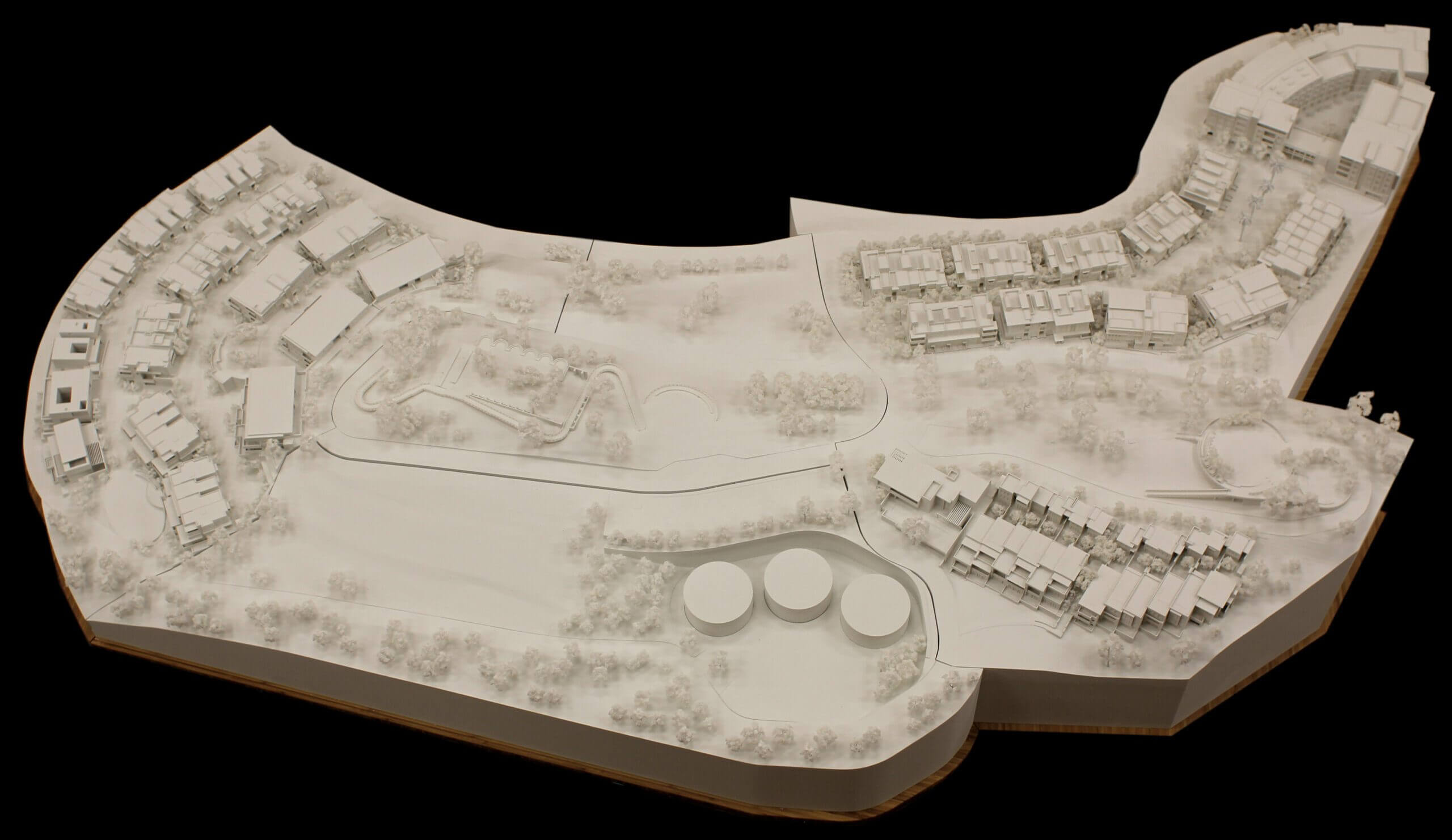

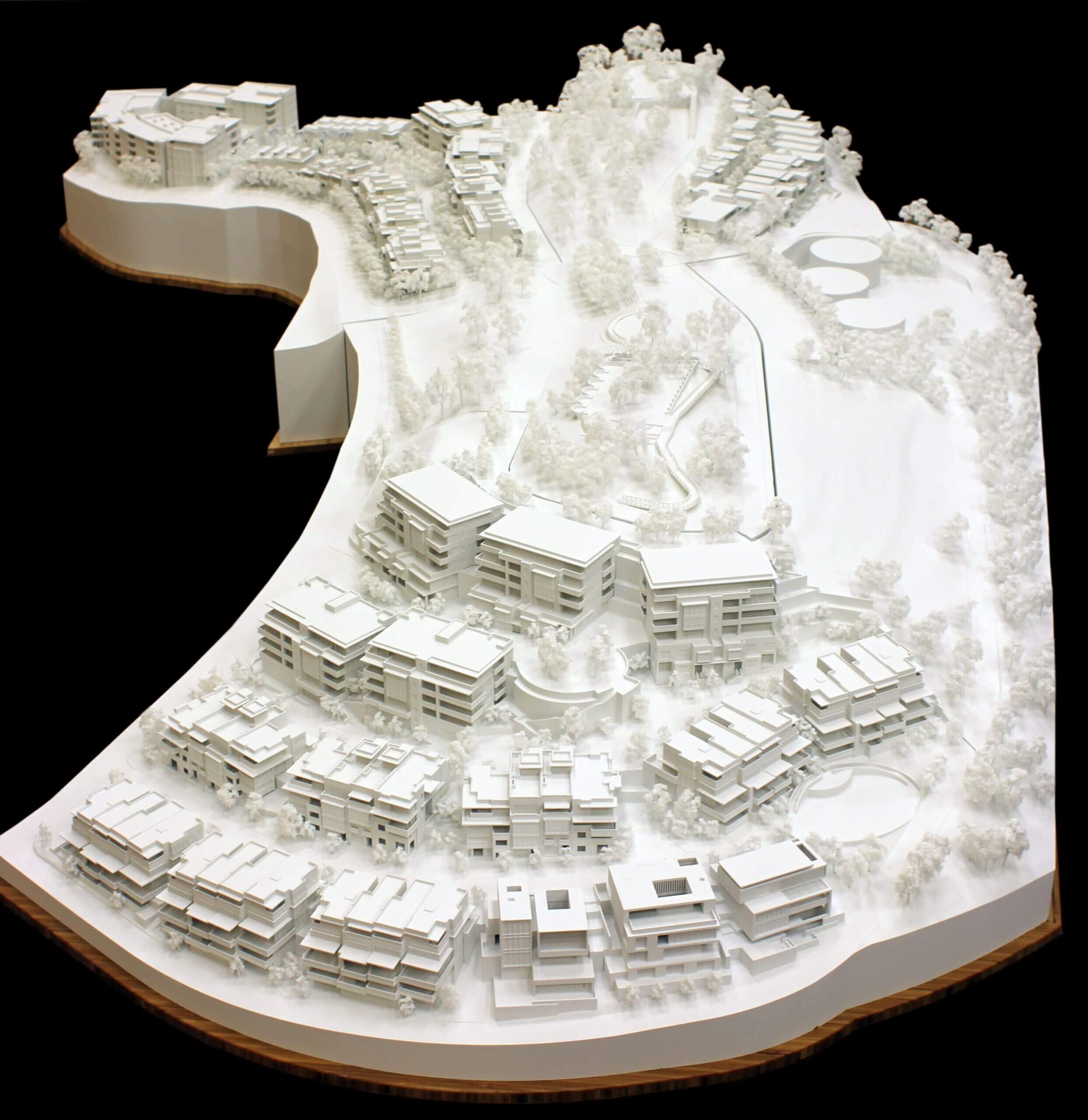

LGM partnered with Hart Howerton for the 5 phases of the design. Due to the extensive grade change across the model, the project totaled 15″ in height and over 125″ in length. This created CNC milling and fitment challenges LGM was more than happy to take on. The final product is a cohesive view of the high end residential project.
Client: Hart Howerton
Duration: 12 weeks
Cost Estimate: $ 25,000 +
Size: 125x70x15″
Scale: 1″=16′
Inputs: Revit, Sketchup, 2D Landscape Plans
Equipment & Processes: Laser Cutting, Hand Assembled, CNC Mill, Plastic 3D Printing, Monochrome 3D Printing, Painted Finish
