Resort Trail Map

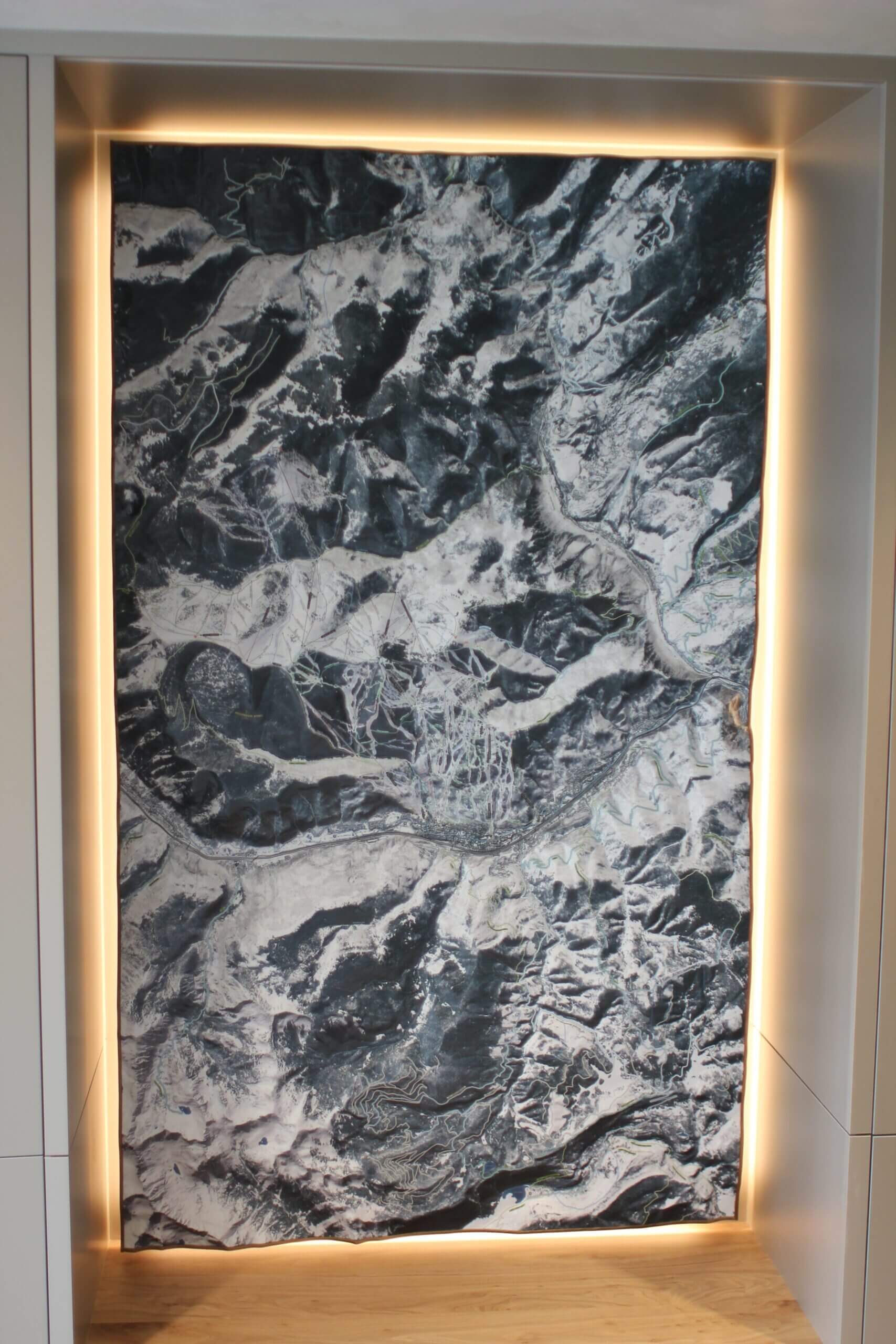

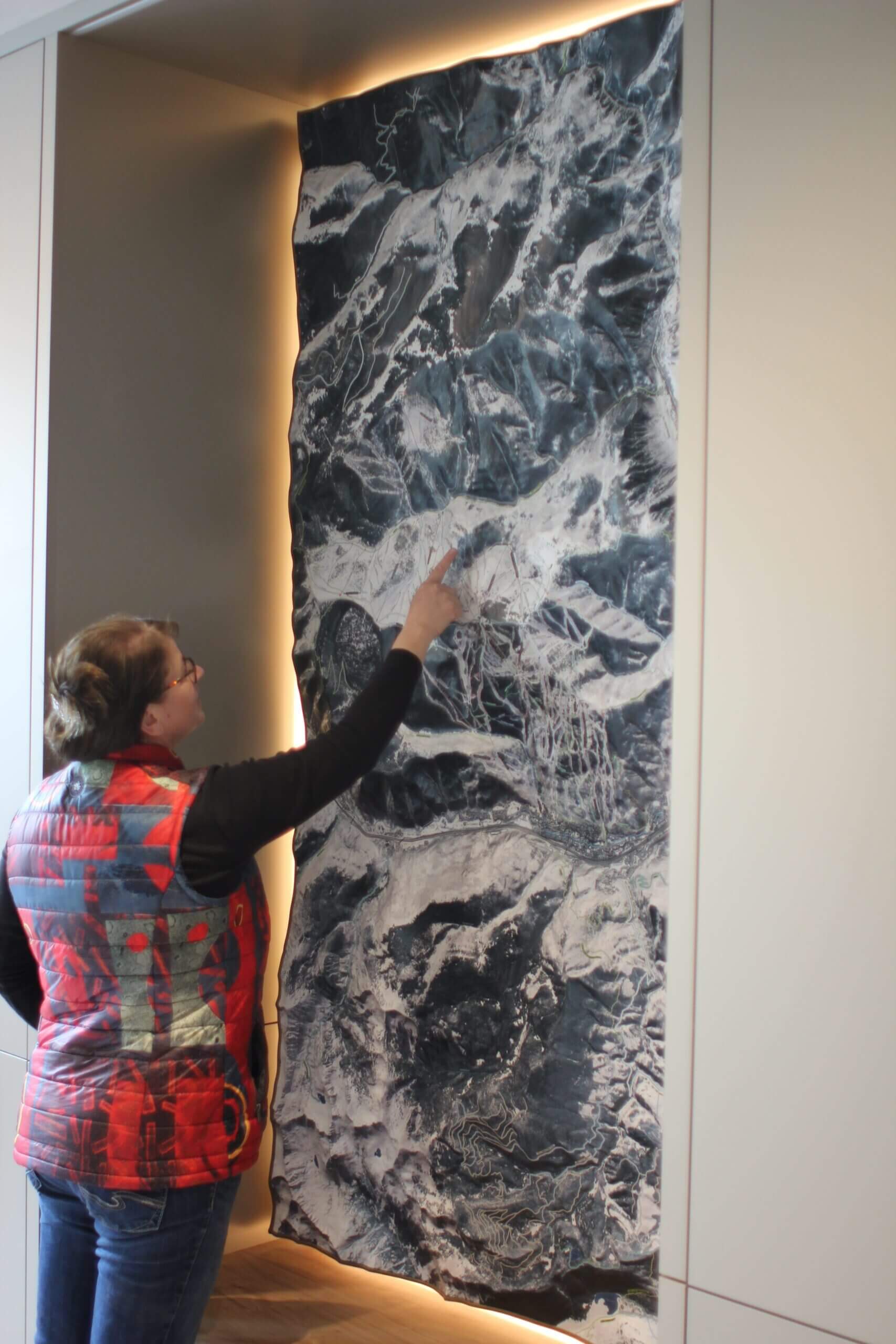

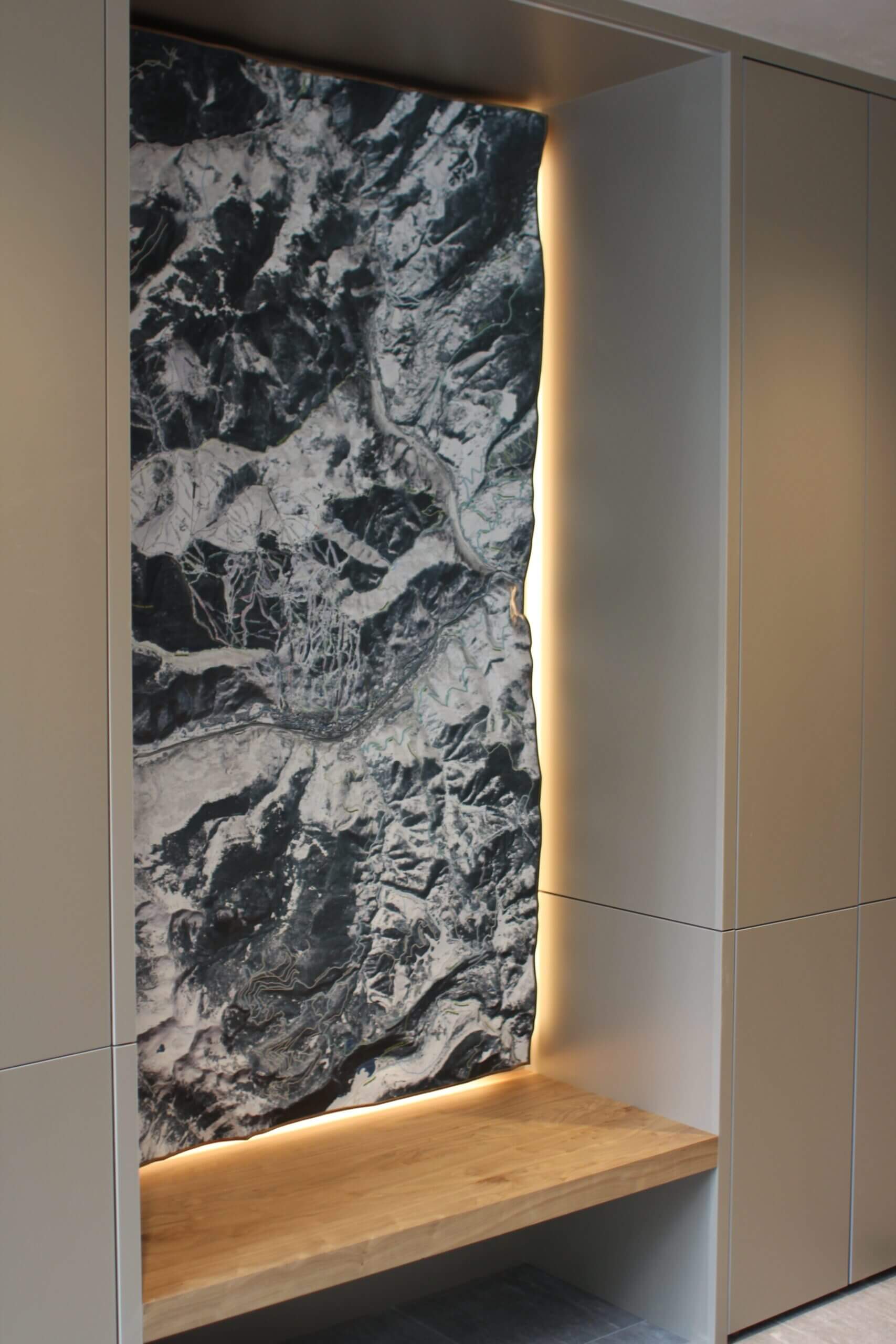

Vail mountain topography display
KH Webb was custom designing a residential home in Vail, CO. Their clients are avid outdoors people, and enjoy the year round recreating available in the Vail Valley. The architect wanted to incorporate a custom trail map into their dedicated ski locker room. The 3D map needed to feature an expansive area, including Vail Mountain’s winter ski runs and local summer hiking trails.
LGM acquired several satellite images of the area during different times of year, and blended them into one cohesive trail map. Summer trails are presented alongside powder filled ski runs in the detailed topography display. The mountainous terrain of the area is shown in full color, offering insight to the snow capped peaks and names of local features.
“THE MAP IS STUNNING!!! I am so absolutely happy and blown away with how stunning and amazing this 3-D map turned out. It is beautiful and delivers completely on my vision and desire for this space. I think you all nailed it and it was such a pleasure to work with you and your team on this project… This single piece makes the whole room!!!” – Private Client | Vail, CO
Client: KH Webb
Duration: 6 weeks
Cost Estimate: $ 25,000+
Size: 96x48x8″
Scale: 1″=1000′
Inputs: Satellite Imagery, GIS Data
Equipment & Processes: CNC Mill, Hand Assembly
