3D Client Communication Presentation Tools
STRATEGIC PLANNING Model Series

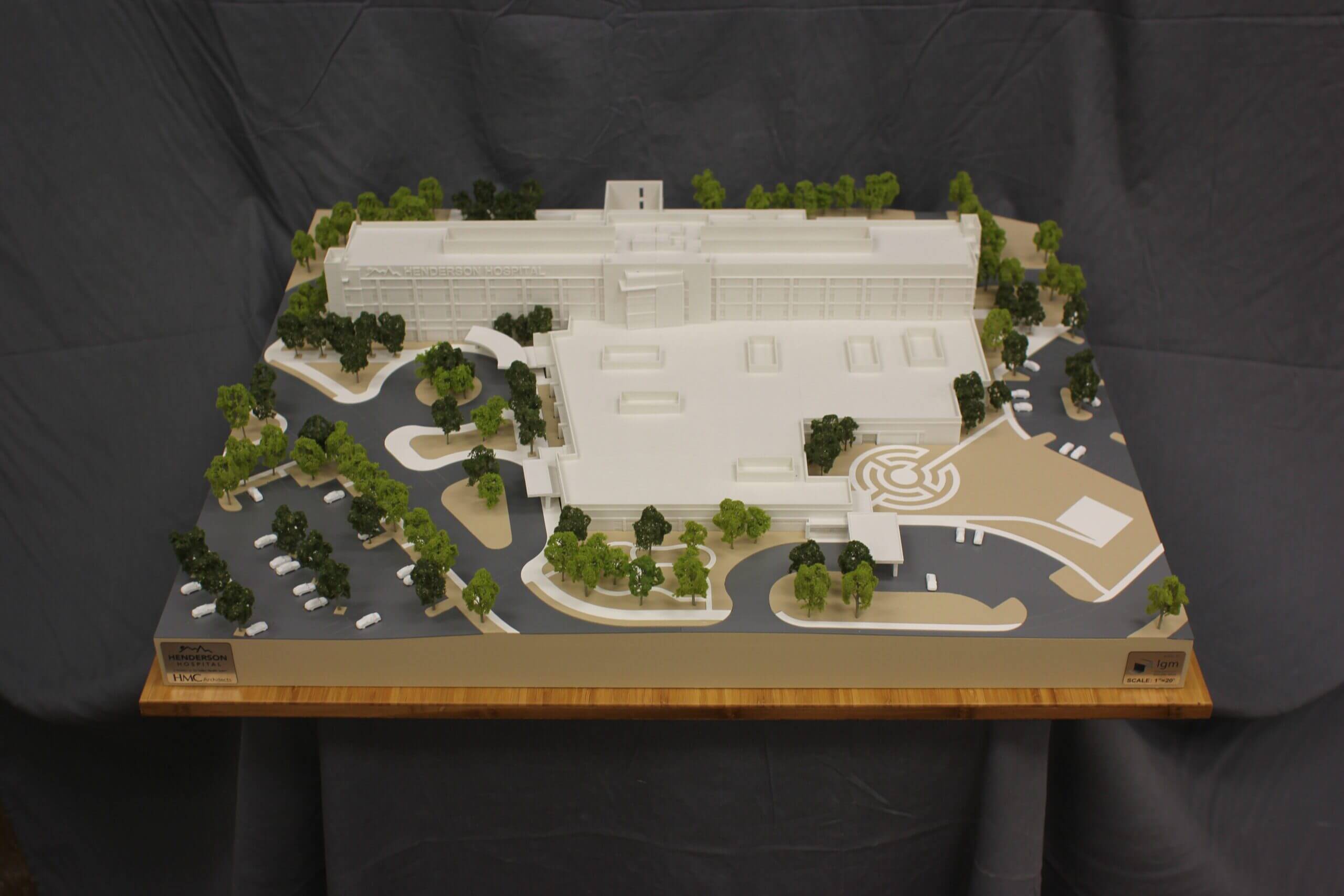

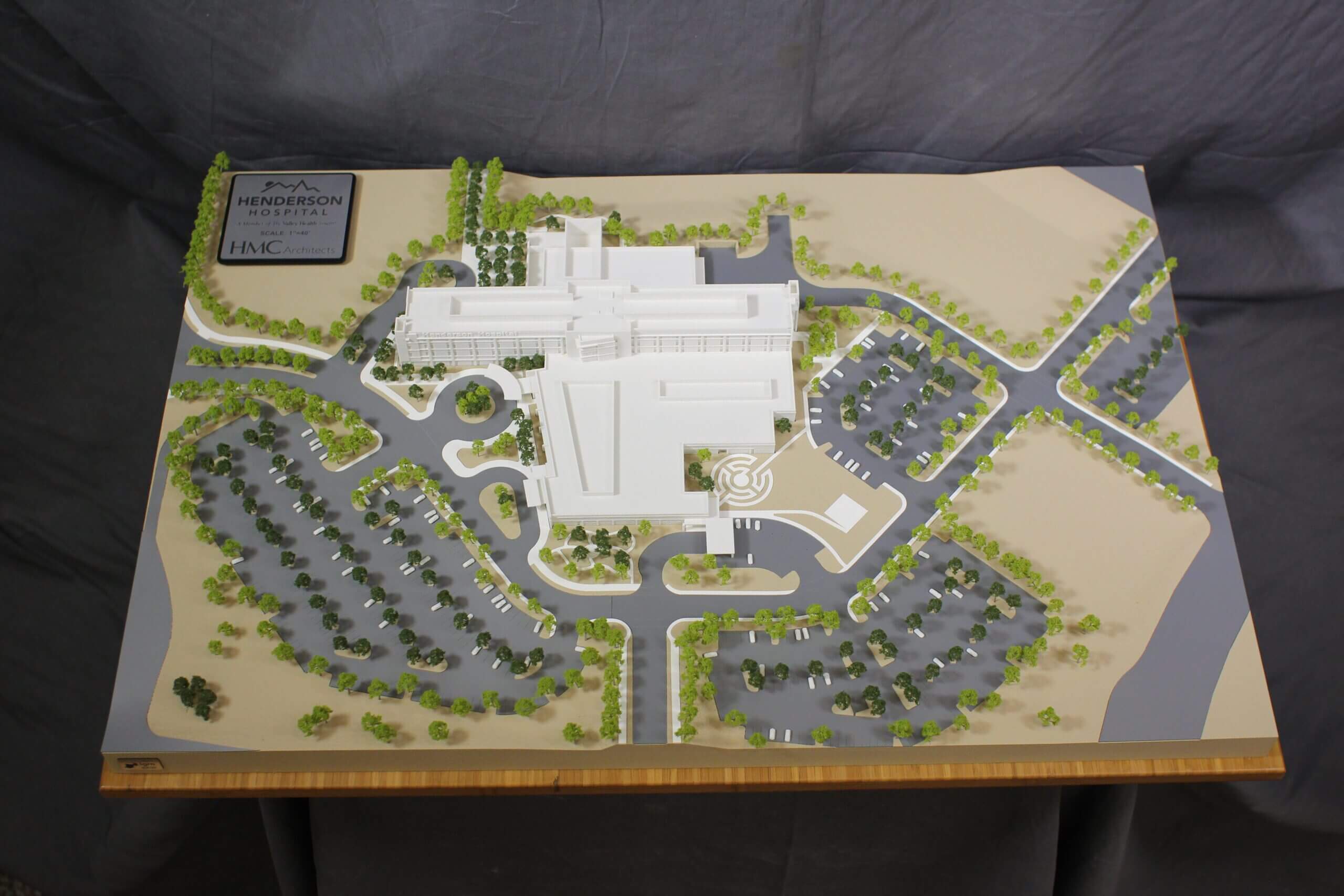

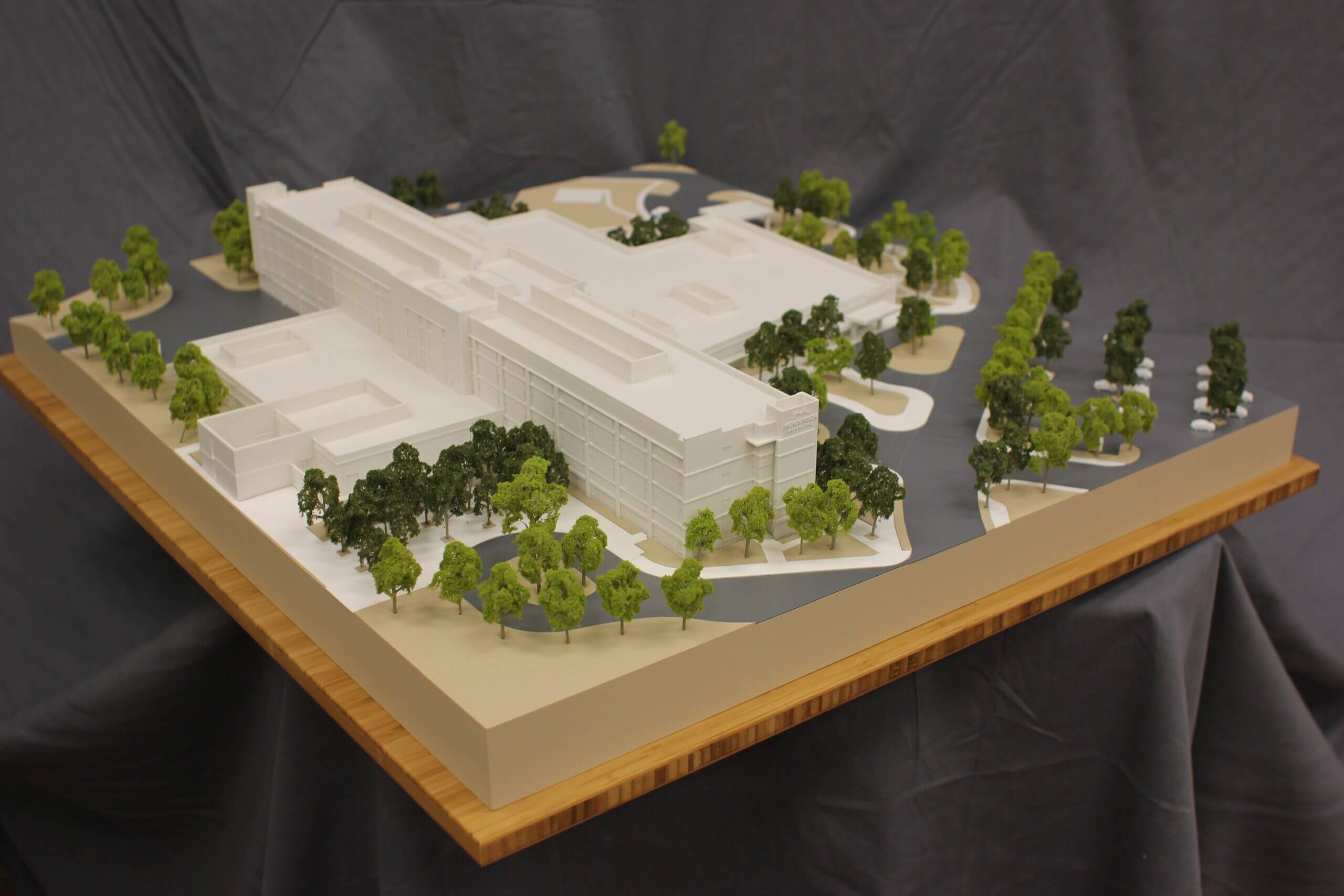

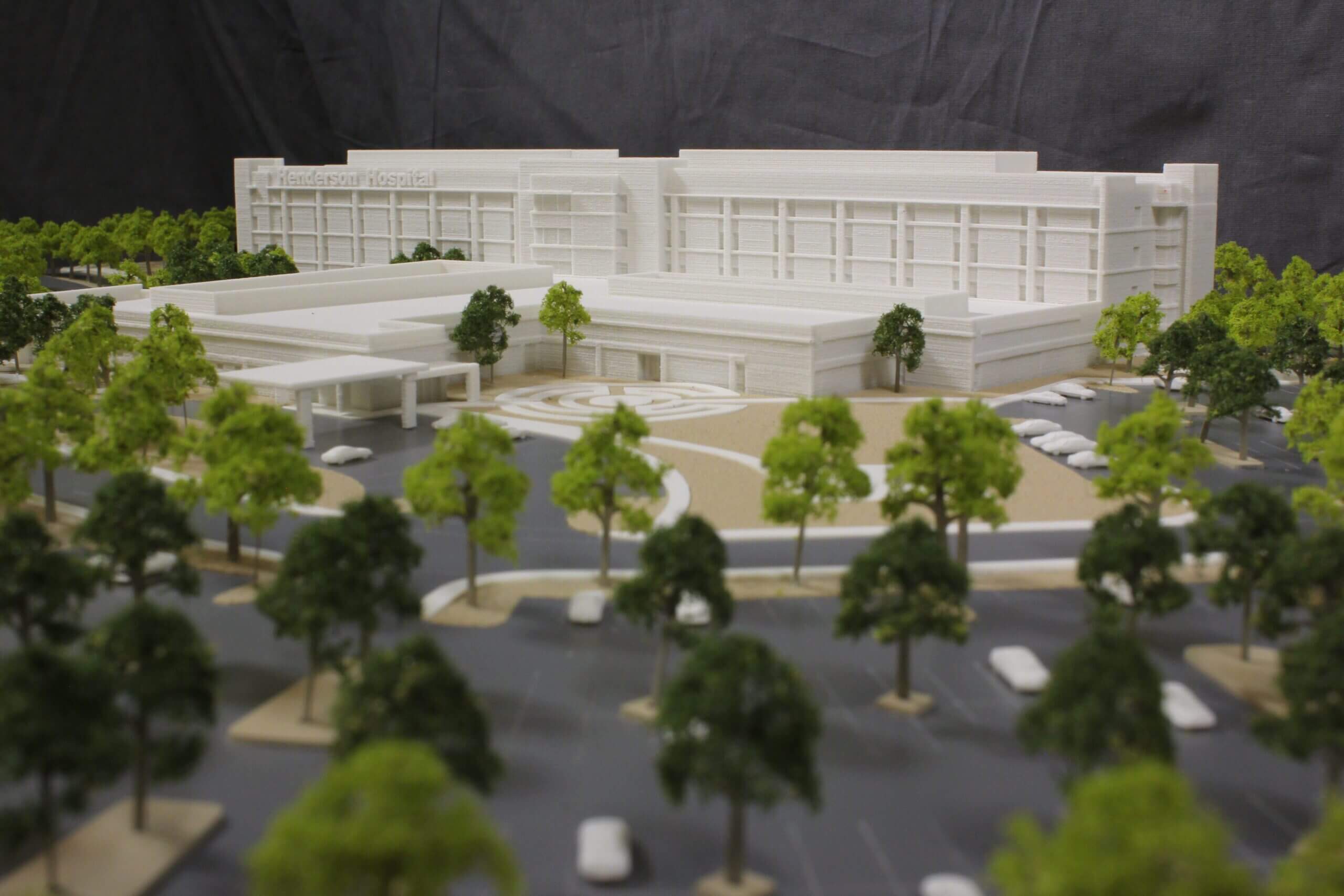

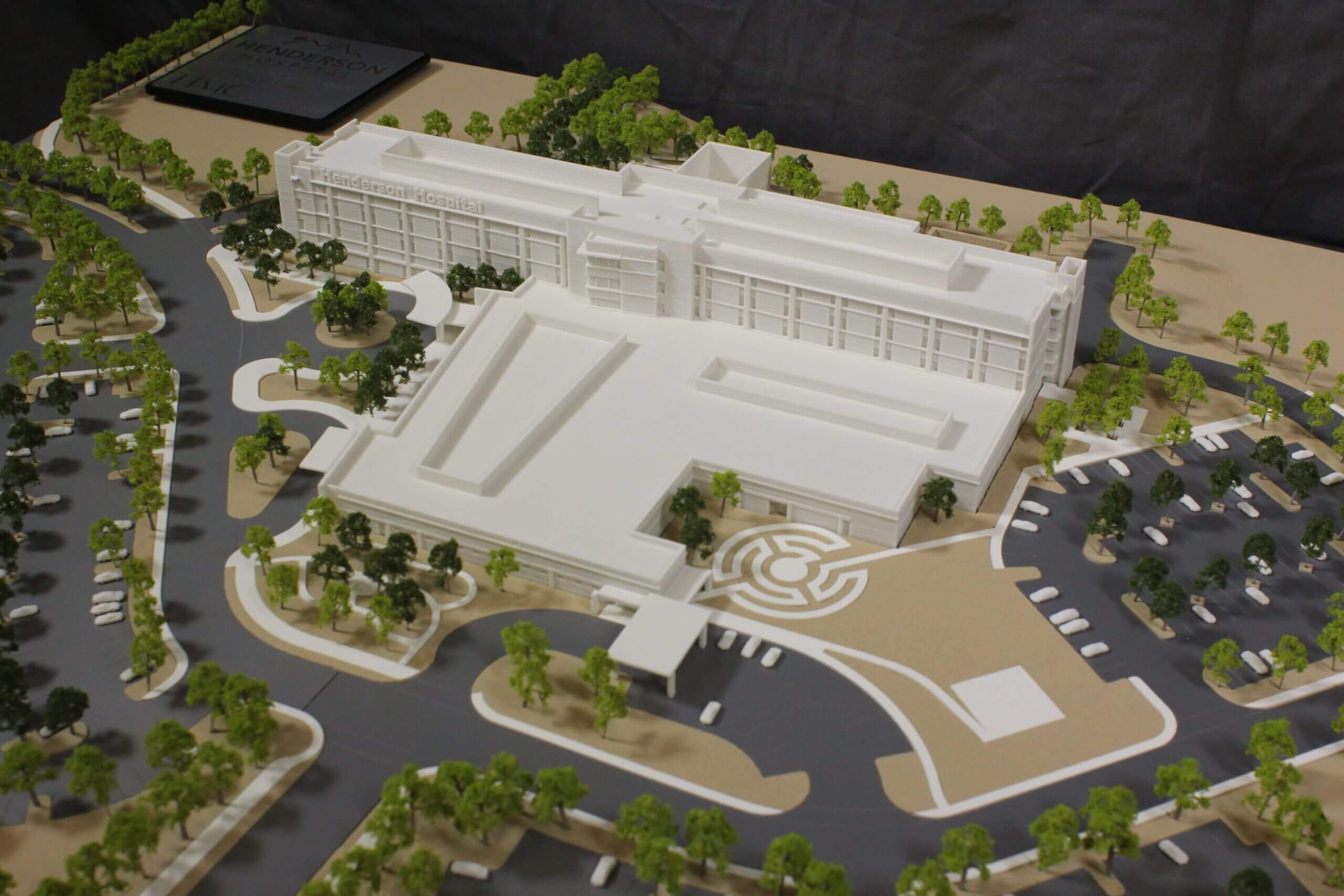

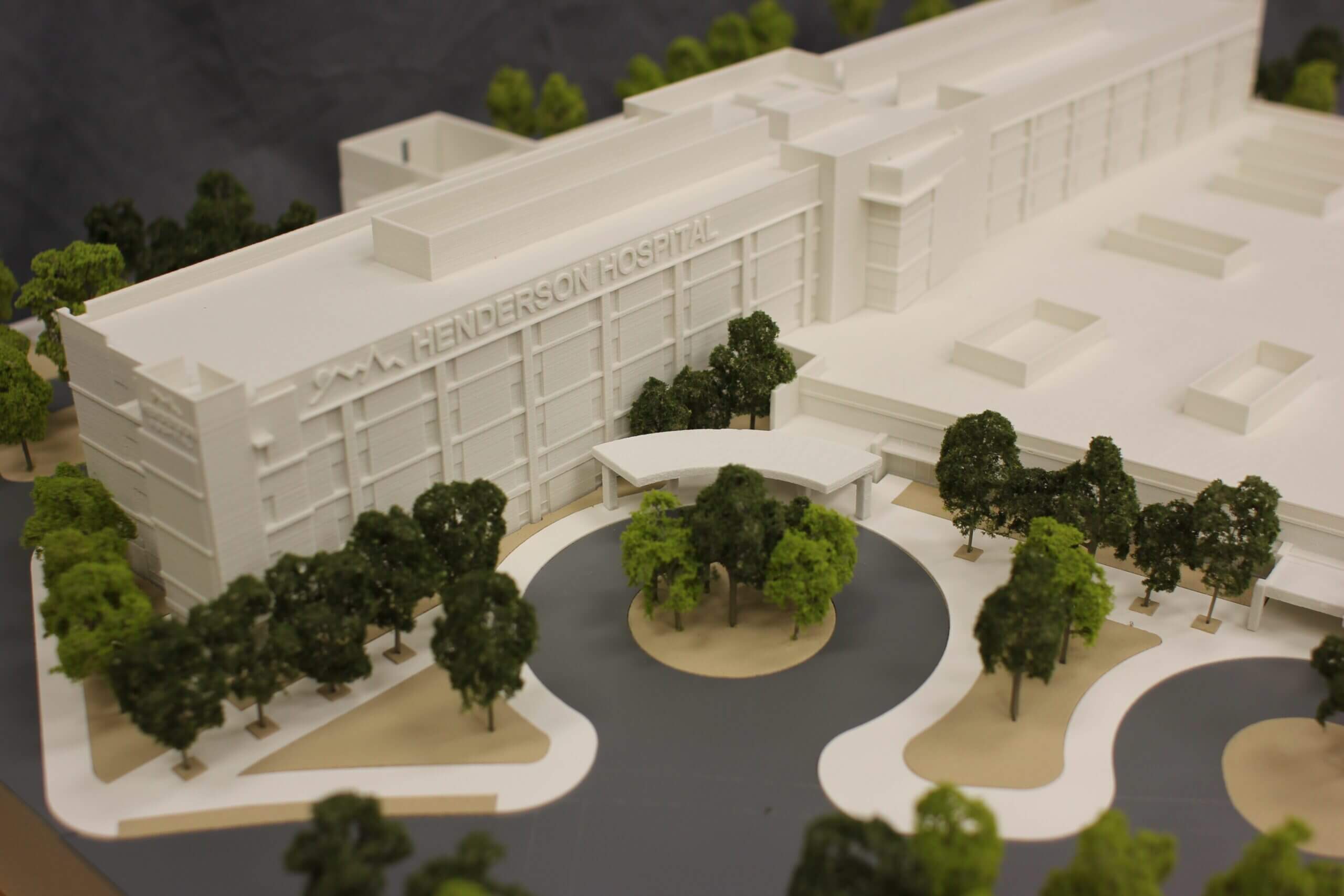

HMC Architects needed an effective visualization tool to communicate structure and civil planning designs to their client. The model needed to showcase both planned and future development opportunities in Union Village’s expansive healthcare commercial village. Due to the site’s large area of interest, the most practical approach was to build two separate but cohesive displays to highlight these features.
LGM quickly converted existing 2D Autodesk Civil and 3D Sketchup data into a physical, information-rich presentation in only 10 days. This momentum continued through HMC Architects project flow and strategic planning efforts. With streamlined communication tools and fast client approvals, the project was completed in just 27 months.
Client: HMC Architects
Duration: 4 weeks
Cost Estimate: $ 5000 – 12,000
Size: 24x36x6″
Scale: 1″=40′, 1″=20′
Inputs: Autodesk Civil, Sketchup, 2D Site plans, Renderings
Equipment & Processes: Monochrome 3d Printing, Laser Cutting, CNC Mill, Hand Assembly, Painted Finish
